10.0 Ampere Heatsink Dual Schottky Barrier Rectifier Diode with Unipolar Polarity for Power Supply Application
Common Cathode Polarity MBR1045CT/MBR1060CT/MBR10100CT/MBR10150CT/MBR10200CT
Common Anode Polarity MBR1045CA/MBR1060CA/MBR10100CA/MBR10150CA/MBR10200CA

Download PDF File Datasheets	Part Number	Peak Repetitive Reverse Voltage	Max.Average Rectified Current		Max.Peak Forward Surge Current	Forward Voltage Drop		Max.Reverse Current TA=25℃	Typical Junction Capacit	Package
		VRRM	IO @ TA		IFSM	VF @ IF		IR	Cj
		V	A	℃	A	V	A	mA	pF

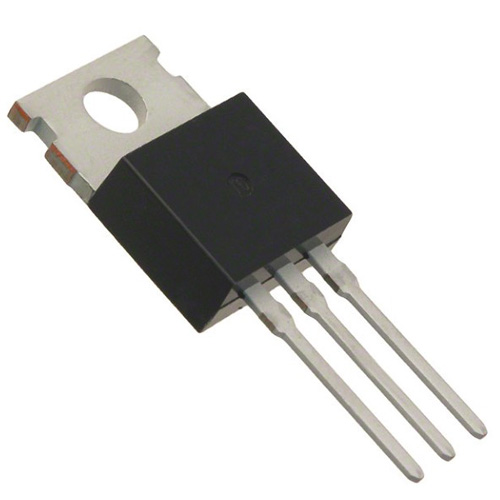

	MBR1045CT	45	10.0	120	120	0.60	5.0	0.1	300	TO-220AB
	MBR1060CT	60		120	120	0.70	5.0	0.1	300
	MBR10100CT	100		120	120	0.85	5.0	0.1	300
	MBR10150CT	150		120	120	0.90	5.0	0.1	300
	MBR10200CT	200		120	120	0.95	5.0	0.1	300
	MBR1045CA	45	10.0	120	120	0.60	5.0	0.1	300	TO-220AB
	MBR1060CA	60		120	120	0.70	5.0	0.1	300
	MBR10100CA	100		120	120	0.85	5.0	0.1	300
	MBR10150CA	150		120	120	0.90	5.0	0.1	300
	MBR10200CA	200		120	120	0.95	5.0	0.1	300
