(1) LCD(Liquid Crystal Display)Application

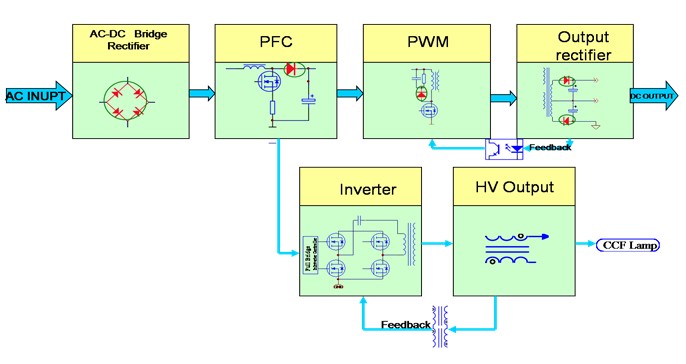

A: block diagram of the LCD power supply
B: LCD power supply circuit diagram
C;LCD rectifiers selection
Machine parameters as follows:
|
Input Voltage
|
Input Power
|
Internal DC voltage
|
|
90~240V
|
45W~370W
|
5V/12V/24V
|
THINKISEMI P/N
|
AC-DC
|
PFC
|
DC-AC (Clamp/Snapping)
|
Output
|
|
UG3KB60/80
GBU6J
GBU4J/4K
GBU6J/6K
GSIB1060
|
MUR460
UESP08J
FESP08J
|
RGPP1M
GUF10M
UF4007
BYV26E
BYV26EGP
|
SB10150CT
SB20150CT
SB10100CT
|
(2) CRT(Cathode Ray Tube) Display Application

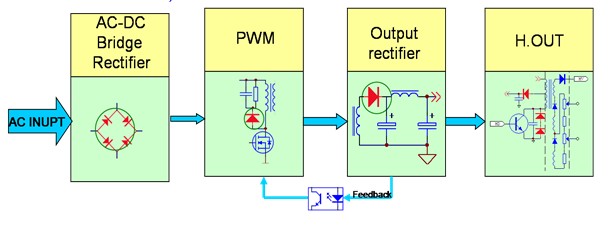

A; block diagram of CRT power supply
.jpg)
B; LCD power supply circuit diagram
C;CRT display rectifiers selection
Machine parameters as follows:
|
Input Voltage
|
Input Power
|
Internal DC voltage
|
|
90~240V
|
47~110W
|
12V/20V/135V/190V
|
THINKISEMI P/N
|
AC-DC
|
DC-AC (Clamp/Snapping)
|
DC output
|
HV Out
|
|
UG3KB60/80
GBU6J
GBU4J/4K
GBU6J/6K
GSIB1060
|
GUF10M
BYV26EGP
RGPP10M
|
MUR460
MUR420
|
RU4DG
RU4C
|
