(1) LED Driver Application

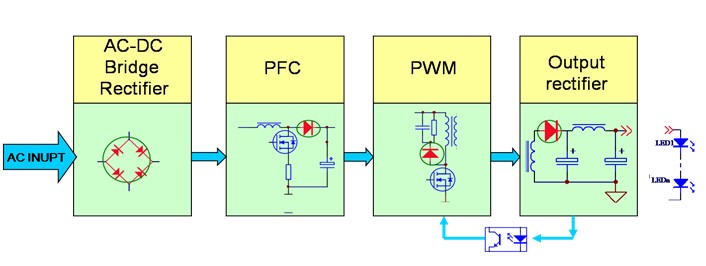

A: block diagram of the LED Driver
.jpg)
B;LED driver rectifiers selection
Machine parameters as follows:
|
Input Voltage |
Output Voltage |
Output Power |
|
90~240V |
12~70V |
5~100W |
THINKISEMI P/N
|
AC-DC |
PFC |
DC-AC (Clamp/Snapping) |
Output |
|
LLD06/08 LLB06/08 UG2KB60 UG3KB60 UG4KB60 UG6KB60 DB156/157 GSIB460 |
MUR160 MUR260 MUR460 |
GUF10M UF4007 BYV26EGP |
SB360 SB560 SB10100CT SB10200CT MUR460 UESP08J |

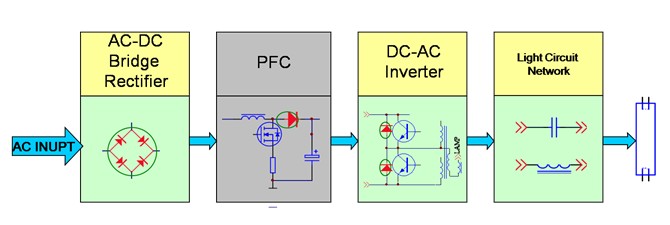

A; block diagram of the CFL
B;Ballast rectifiers selection
|
Input Voltage |
Output Power |
|
90~240V |
3~200W |
THINKISEMI P/N
|
AC-DC |
DC-AC (Clamp/Snapping) |
PFC |
|
LD06~10 LLD06~10 LB06~10 LLB06~10 DB157 UG3KB60/80 UG4KB60/80 UG6KB60/80 |
GUF10M UF4007 FR107 FR107G |
MUR160 MUR160S MURS160 MURS260 MUR260 MUR460 |
Note: PFC abbr. “Power Factor Correction”.
(3) Ballast Application

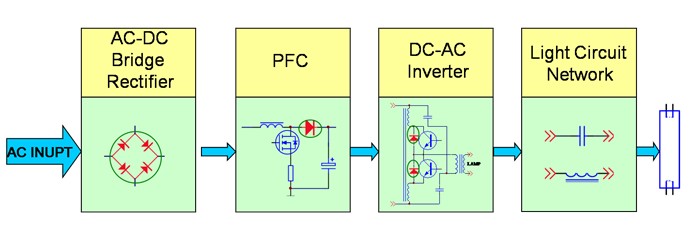

A; block diagram of the Ballast
B;Ballast rectifiers selection
Ballast、HID machine parameters as follows:
|
Input Voltage |
Output Power |
|
90~370V |
2×32W、4×32W、200W、300W |
THINKISEMI P/N (Ballast）
|
AC-DC |
PFC |
DC-AC (Clamp/Snapping) |
Others |
|
1N4007G、1N4007GP SS1M、SS1Q BYG10M、GP20M GPP20M |
MUR160 MUR260 |
SR1MRGP10M GUF10M BYV95GP P6KE400 |
1N4148 SB140 SB14 SB12 |
THINKISEMI P/N (HID)
|
AC-DC |
PFC |
|
UG4KB60/80 UG6KB60/80 GBL06 |
MUR260 |
