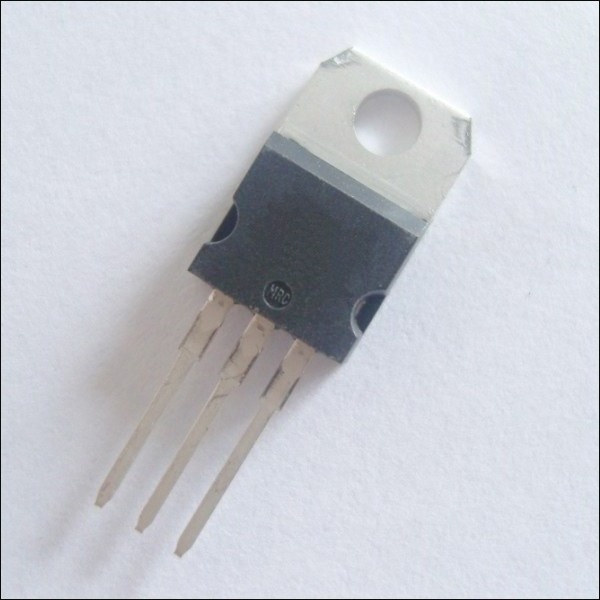

LM7805/LM7809/LM7812/LM7815/LM7818/LM7824/LM7905/LM7912

 3-Terminal 1 A Positive Voltage Regulator/3-Terminal Fixed Negative Voltage Regulator

Download Datasheet	Part Number	PD	Vi	Vo	Iq	PINARRAY	Package
		(mW)	(V)	(V)	(m A)
	78L05	625	30	4.75～5.25	5.5	OGI	TO-92
	78L06	625	30	5.7～6.3	6.0	OGI	TO-92
	78L08	625	30	7.6～8.4	5.5	OGI	TO-92
	78L09	625	30	8.55～9.45	6.0	OGI	TO-92
	78L12	625	35	11.4～12.6	6.0	OGI	TO-92
	79L05	625	-30	-4.75～-5.25	5.5	OGI	TO-92
	79L06	625	-30	-5.7～-6.3	6.0	GIO	TO-92
	79L08	625	-30	-7.6～-8.4	6.0	GIO	TO-92
	79L09	625	-30	-8.55～-9.45	-6.0	GIO	TO-92
	79L12	625	-30	-11.4～-12.6	-6.0	GIO	TO-92
	LM7805	2000	35	4.8～-5.2	8.0	IGO	TO-220M1
	LM7809	2000	35	8.65～9.35	6.0	IGO	TO-220M1
	LM7812	2000	35	11.5～12.5	8.0	IGO	TO-220M1
	LM7815	2000	35	14.4～15.6	8.0	IGO	TO-220M1
	LM7905	2000	-30	-4.8～-5.2	2.0	GIO	TO-220M1
	LM7912	2000	-25	-11.5～-12.5	2.0	GIO	TO-220M1
	LM7915	2000	-25	-14.4～-15.6	2.0	GIO	TO-220M1
