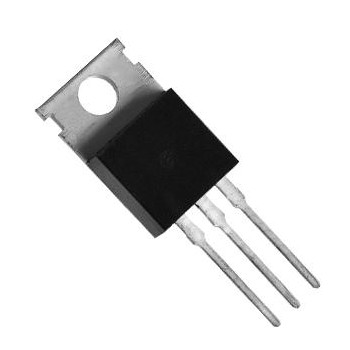

MBR2035CT/MBR2045CT/MBR2050CT/MBR2060CT/MBR20100CT/MBR20150CT/MBR20200CT Schottky Diode

Schottky Barrier Rectifier Diode/Schottky Diode for SMPS/UPS/EPS/LED Driver/LED SMPS

data-sheets www.thinkisemi.com/pdf/MBR2035CT-MBR20200CT.pdf

Part Number	Peak Repetitive Reverse Voltage	Max.Average Rectified Current		Max.Peak Forward Surge Current	Forward Voltage Drop		Max.Reverse Current TA=25℃	Typical Junction Capacit	Package
	VRRM	IO @ TA		IFSM	VF @ IF		IR	Cj
	V	A	℃	A	V	A	mA	pF
20.0 AMP Schottky Barrier Rectifiers
MBR2035CT	35	20.0	120	150	0.60	10.0	0.1	400	TO-220AB
MBR2045CT	45	20.0	120	150	0.60	10.0	0.1	400	TO-220AB
MBR2050CT	50	20.0	120	150	0.70	10.0	0.1	400	TO-220AB
MBR2060CT	60	20.0	120	150	0.70	10.0	0.1	400	TO-220AB
MBR20100CT	100	20.0	120	150	0.85	10.0	0.1	400	TO-220AB
MBR20150CT	150	20.0	120	150	0.90	10.0	0.1	400	TO-220AB
MBR20200CT	200	20.0	120	150	0.95	10.0	0.1	400	TO-220AB
