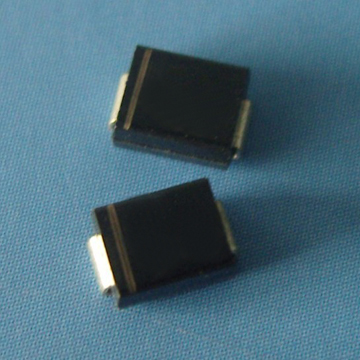

SK32B/SK33B/SK34B/SK35B/SK36B/SK38B/SK310B/SK320B SMB/DO-214AA Package Schottky Diode

data-sheets www.thinkisemi.com/pdf/SK34B-SK320B.pdf

Part Number	Peak Repetitive Reverse Voltage	Max.Average Rectified Current		Max.Peak Forward Surge Current	Forward Voltage Drop		Max.Reverse Current TA=25℃	Typical Junction Capacit	Package
	VRRM	IO @ TA		IFSM	VF @ IF		IR	Cj
	V	A	℃	A	V	A	mA	pF
SK32B	20	3.0	100	70	0.50	3.0	0.5	160	SMB/DO-214AA
SK33B	30	3.0	100	70	0.50	3.0	0.5	160	SMB/DO-214AA
SK34B	40	3.0	100	70	0.50	3.0	0.5	160	SMB/DO-214AA
SK35B	50	3.0	100	70	0.70	3.0	0.5	160	SMB/DO-214AA
SK36B	60	3.0	100	70	0.70	3.0	0.5	160	SMB/DO-214AA
SK38B	80	3.0	100	70	0.85	3.0	0.5	160	SMB/DO-214AA
SK310B	100	3.0	100	70	0.85	3.0	0.1	160	SMB/DO-214AA
SK320B	200	3.0	100	70	0.95	3.0	0.1	160	SMB/DO-214AA
