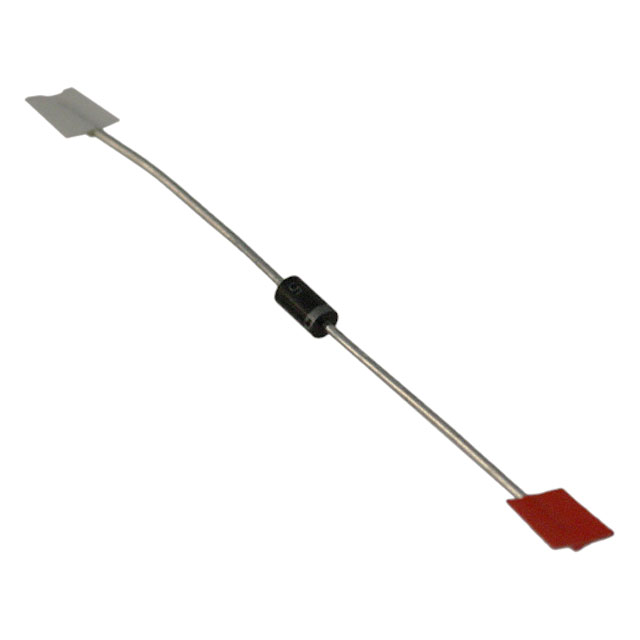

DO-201AD package 1500 watt Transil/TVS Diode

1.5KE200A DO-201AD package axial lead 1500 watt Transil/TVS Diode/TVS(TRANSIENT VOLTAGE SUPPRESSOR)

Part Number		Reverse Stand-Off Voltage	Breakdown Voltage@IT	Breakdown Voltage@IT	Test Current	Max. Clamping Voltage @IPP	Peak Pulse Current	Reverse Leakage @VRWM


UNI-POLAR	BI-POLAR	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(µA)
1.5KE6.8A	1.5KE6.8CA	5.8	6.45	7.14	10	10.5	143	1000
1.5KE7.5A	1.5KE7.5CA	6.4	7.13	7.88	10	11.3	132	500
1.5KE8.2A	1.5KE8.2CA	7.02	7.79	8.61	10	12.1	124	200
1.5KE9.1A	1.5KE9.1CA	7.78	8.65	9.5	1	13.4	112	50
1.5KE10A	1.5KE10CA	8.55	9.5	10.5	1	14.5	103	10
1.5KE11A	1.5KE11CA	9.4	10.5	11.6	1	15.6	96	5
1.5KE12A	1.5KE12CA	10.2	11.4	12.6	1	16.7	90	5
1.5KE13A	1.5KE13CA	11.1	12.4	13.7	1	18.2	82	5
1.5KE15A	1.5KE15CA	12.8	14.3	15.8	1	21.2	71	5
1.5KE16A	1.5KE16CA	13.6	15.2	16.8	1	22.5	67	5
1.5KE18A	1.5KE18CA	15.3	17.1	18.9	1	25.2	59.5	5
1.5KE20A	1.5KE20CA	17.1	19	21	1	27.7	54	5
1.5KE22A	1.5KE22CA	18.8	20.9	23.1	1	30.6	49	5
1.5KE24A	1.5KE24CA	20.5	22.8	25.2	1	33.2	45	5
1.5KE27A	1.5KE27CA	23.1	25.7	28.4	1	37.5	40	5

Part Number		Reverse Stand-Off Voltage	Breakdown Voltage@IT	Breakdown Voltage@IT	Test Current	Max. Clamping Voltage @IPP	Peak Pulse Current	Reverse Leakage @VRWM


UNI-POLAR	BI-POLAR	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(µA)
1.5KE30A	1.5KE30CA	25.6	28.5	31.5	1	41.4	36	5
1.5KE33A	1.5KE33CA	28.2	31.4	34.7	1	45.7	33	5
1.5KE36A	1.5KE36CA	30.8	34.2	37.8	1	49.9	30	5
1.5KE39A	1.5KE39CA	33.3	37.1	41	1	53.9	28	5
1.5KE43A	1.5KE43CA	36.8	40.9	45.2	1	59.3	25.3	5
1.5KE47A	1.5KE47CA	40.2	44.7	49.4	1	64.8	23.2	5
1.5KE51A	1.5KE51CA	43.6	48.5	53.6	1	70.1	21.4	5
1.5KE56A	1.5KE56CA	47.8	53.2	58.8	1	77	19.5	5
1.5KE62A	1.5KE62CA	53	58.9	65.1	1	85	17.7	5
1.5KE68A	1.5KE68CA	58.1	64.6	71.4	1	92	16.3	5
1.5KE75A	1.5KE75CA	64.1	71.3	78.8	1	103	14.6	5
1.5KE82A	1.5KE82CA	70.1	77.9	86.1	1	113	13.3	5
1.5KE91A	1.5KE91CA	77.8	86.5	95.5	1	125	12	5
1.5KE100A	1.5KE100CA	85.5	95	105	1	137	11	5
1.5KE110A	1.5KE110CA	94	105	116	1	152	9.9	5
1.5KE120A	1.5KE120CA	102	114	126	1	165	9.1	5
1.5KE130A	1.5KE130CA	111	124	137	1	179	8.4	5
1.5KE150A	1.5KE150CA	128	143	158	1	207	7.2	5
1.5KE160A	1.5KE160CA	136	152	168	1	219	6.8	5
1.5KE170A	1.5KE170CA	145	162	179	1	234	6.4	5
1.5KE180A	1.5KE180CA	154	171	189	1	246	6.1	5
1.5KE200A	1.5KE200CA	171	190	210	1	274	5.5	5
1.5KE220A	1.5KE220CA	185	209	231	1	328	4.6	5
1.5KE250A	1.5KE250CA	214	237	263	1	344	4.5	5
1.5KE300A	1.5KE300CA	256	285	315	1	414	3.8	5
1.5KE350A	1.5KE350CA	300	332	368	1	482	3.2	5
1.5KE400A	1.5KE400CA	342	380	420	1	548	2.8	5
1.5KE440A	1.5KE440CA	376	418	462	1	602	2.6	5
1.5KE480A	1.5KE480CA	408	456	504	1	658	2.3	5
1.5KE510A	1.5KE510CA	434	485	535	1	698	2.1	5
1.5KE530A	1.5KE530CA	450	503.5	556.5	1	725	2.1	5
1.5KE540A	1.5KE540CA	459	513	567	1	740	2	5
1.5KE550A	1.5KE550CA	467	522.5	577.5	1	760	2	5
Notes: For bidirectional type having VRWM of 10 volts and less, the IR limit is double.
